S-LED

6 Item(s)

per page

Set Descending Direction

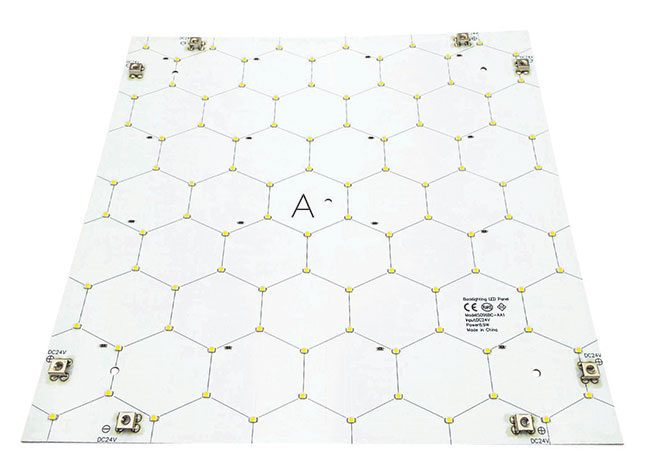

  1. S LED (A)

    S LED (A) S096BC-AA1-6500

    S-LED is an LED back lighting panel system designed for internally lit poster box and fabric-face sign boxes.

    Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
    S096BC-AA1-6500 - 6500 +/- 500K 115º 501 ≥75 75 lm/W 24VDC
    Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
    288mA 6.90W 300x300mm 96 262g -20º~+70º - IP20

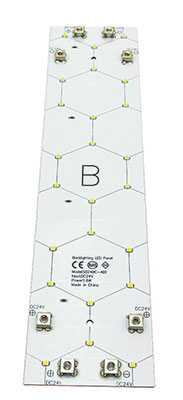

  2. S LED (B)

    S LED (B) S024BC-AB1-6500

    S-LED is an LED back lighting panel system designed for internally lit poster box and fabric-face sign boxes.

    Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
    S024BC-AB1-6500 - 6500 +/- 500K 115º 139 ≥75 77 lm/W 24VDC
    Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
    75mA 1.80W 300x75mm 24 73g -20º~+70º - IP20
  3. S LED (C)

    S LED (C) S024BC-AB2-6500

    S-LED is an LED back lighting panel system designed for internally lit poster box and fabric-face sign boxes.

    Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
    S024BC-AB2-6500 - 6500 +/- 500K 115º 139 ≥75 77 lm/W 24VDC
    Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
    75mA 1.80W 300x75mm 24 73g -20º~+70º - IP20
  4. S LED (D)

    S LED (D) S024BC-AB3-6500

    S-LED is an LED back lighting panel system designed for internally lit poster box and fabric-face sign boxes.

    Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
    S024BC-AB3-6500 - 6500 +/- 500K 115º 139 ≥75 77 lm/W 24VDC
    Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
    75mA 1.80W 300x75mm 24 20g -20º~+70º - IP20
  5. S LED (E)

    S LED (E) S006BC-AC1-6500

    S-LED is an LED back lighting panel system designed for internally lit poster box and fabric-face sign boxes.

    Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
    S006BC-AC1-6500 - 6500 +/- 500K 115º 35 ≥75 78 lm/W 24VDC
    Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
    19mA 0.45W 75x75mm 6 20g -20º~+70º - IP20
  6. S LED (F)

    S LED (F) S006BC-AC2-6500

    S-LED is an LED back lighting panel system designed for internally lit poster box and fabric-face sign boxes.

    Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
    S006BC-AC2-6500 - 6500 +/- 500K 115º 35 ≥75 78 lm/W 24VDC
    Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
    19mA 0.45W 75x75mm 6 20g -20º~+70º - IP20
