  1. SE LED 01

    SE LED 01 SE001F LED

    SE-LED is a unique chain LED lighting system suitable for slim sign boxes with return depths from just 40mm.
    Part No. Colour Input Voltage Operating Current Operating Temp.
    SE001F LED White 12V DC 0.03A (Max.) - 20º~+60º
    Power Consumption Dimensions View Angle Luminous Flux (Typ.) Colour Temperature (Typ.)
    0.32W (Max.) 80mm(L) x 30mm(W) x 6.6mm(H) 170° 33lm 7000K (range 6000K~8000K)
  2. SE LED 01 Single

    SE LED 01 Single SE001F-A1

    Single ‘busbar’ power strip: Up to 294pcs modules in seven chains of 42pcs. Note: max 2pcs 'busbar' in series
    Part No. Colour Input Voltage Operating Current Operating Temp.
    SE001F-A1 - 12V DC - - 20º~+60º
    Power Consumption Dimensions View Angle Luminous Flux (Typ.) Colour Temperature (Typ.)
    - 560mm(L) x 15mm(W) x 15mm(H) - - -
  3. SE LED 01 Double

    SE LED 01 Double SE001F-A2

    Double ‘busbar’ power strip with 294pcs modules in fourteen chains of 21pcs. Note: max 2pcs 'busbar' in series
    Part No. Colour Input Voltage Operating Current Operating Temp.
    SE001F-A2 - 12V DC - - 20º~+60º
    Power Consumption Dimensions View Angle Luminous Flux (Typ.) Colour Temperature (Typ.)
    - 560mm(L) x 15mm(W) x 15mm(H) - - -

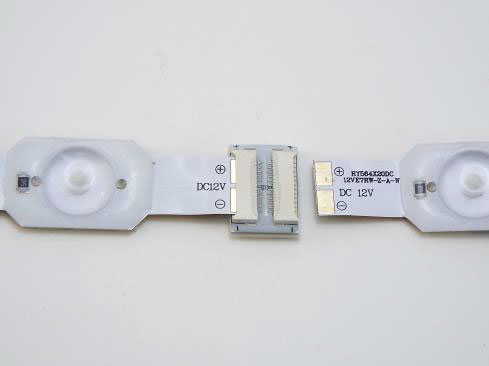

  4. SE LED Butt Connector

    SE LED Butt Connector SE001F-B2

    Part No. Colour Input Voltage Operating Current Operating Temp.
    SE001F-B2 - 12V DC - - 20º~+60º
    Power Consumption Dimensions View Angle Luminous Flux (Typ.) Colour Temperature (Typ.)
    - 12mm(L) x 15mm(W) x 4mm(H) - - -
