FlexiLED-0BA-NW
FlexiLED - 0BA narrow is a flexible, ribbon like, LED lighting system intended for edge lighting acrylic PMMA light-sheet type materials.
Download PDF brochure for this range

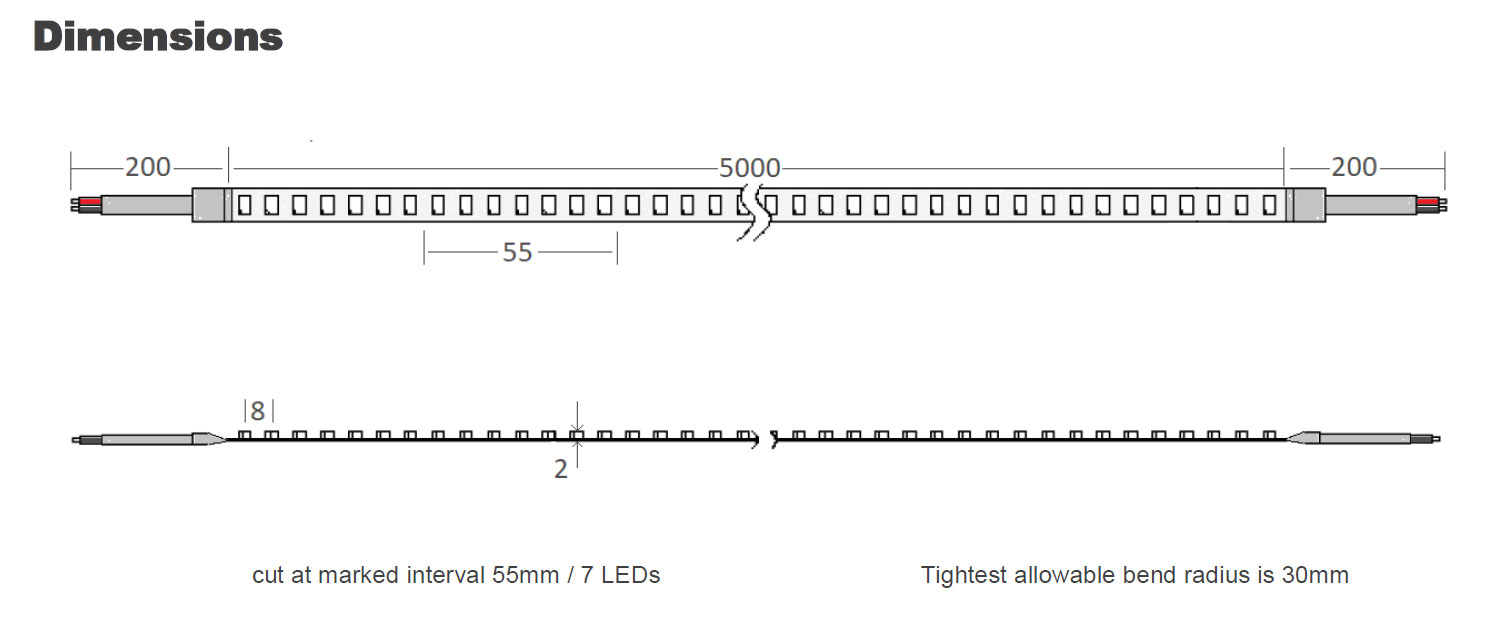

FlexiLED - 0BA narrow can be cut into shorter segments at points marked at 55mm intervals and a segment includes 7pcs LEDs. Each reel is supplied with convenient double-ended inputs meaning that one 5 metre length could be cut in two and these lengths powered via their flying leads - eliminating the need to solder one pair of leads. The maximum single series length that can be powered is one reel of 5 metres. An additional length can be connected in parallel. The ribbon has a peel off and self-adhesive 3M backing for fast and easy fixing to most de-greased surfaces.

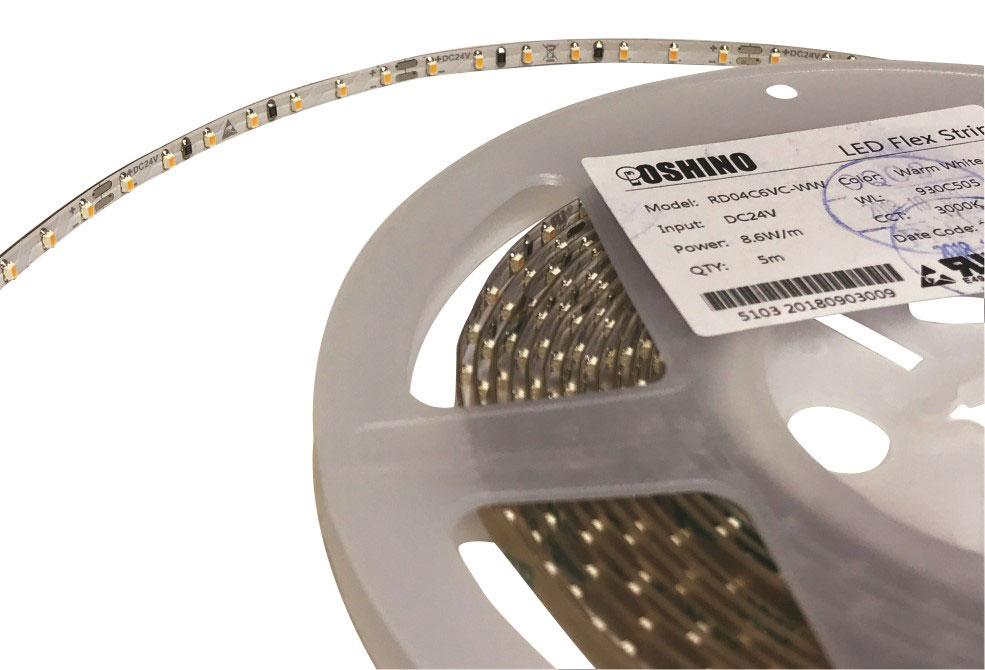

One pack of FlexiLED – 0BA narrow consists of 630pcs LEDs in a 5 metre long ribbon supplied on a plastic reel dispenser in an anti-static foil bag.
| Colour | White |
| Input Voltage | 24 |
| Operating Current | N/A |
| Operating Temp. | -25 to +60 ºC |
| Power Consumption | 1m-8.6W | 5m-36W |
| Dimensions | 5m |
| View Angle | 110º |
| Luminous Flux (Typ.) | 750lm/m |
| Colour Temperature (Typ.) | 6500 ºK |
| CRI | - |
| Efficacy | 87 lm/W |
| Number of LEDs | 126pcs / m |
| Weight | N/A |
| IP Rating | IP20 |
| Storage Temp. [ºC] | -25 to + 60 ºC |
