OL-2835A-72-12-R
Our new and improved indoor version makes FlexiLED-3D even more versatile; easy to create beautiful, stunningly lit designs for many indoor sign lighting applications.
Download PDF brochure for this range

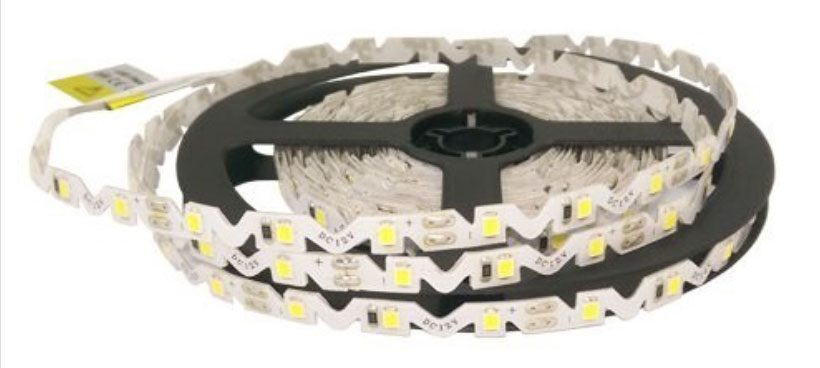

FlexiLED – 3D is a flexible, ribbon like lighting system with a difference; it can be bent, turned and curved in three directions. Supplied in convenient 3 metre reel lengths and in a choice of two white LED colour temperatures plus a red LED version.
As with the original FlexiLED-3D there’s no need for the fiddly cutting-up and soldering of short, trouble-some lengths to make it curve around flat bends and over contoured shapes in the way necessary with a normal ‘2D’ conventional LED strip. With its S-shaped p.c.b. FlexiLED-3D is easily formed into shape and stuck down with its peel-off 3M VHB self-adhesive backing. One pack of FlexiLED-3D consists of 216pcs LEDs in a 3 metre long ribbon supplied on a plastic dispenser in an anti-static foil bag.
Halo illumination of flat-cut shapes and logos; normal indoor use
| Colour | Red |
| Input Voltage | 12 |
| Operating Current | 1m-720mA | 3m-2158mA |
| Operating Temp. | -10 to +60 ºC |
| Power Consumption | 1m-8.6W | 3m-24.9W |
| Dimensions | 3m reel |
| View Angle | 115º |
| Luminous Flux (Typ.) | 200lm/m |
| Colour Temperature (Typ.) | 620-625nm |
| CRI | - |
| Efficacy | - |
| Number of LEDs | 72/m |
| Weight | N/A |
| IP Rating | IP20 |
| Storage Temp. [ºC] | -25 to + 70 ºC |
