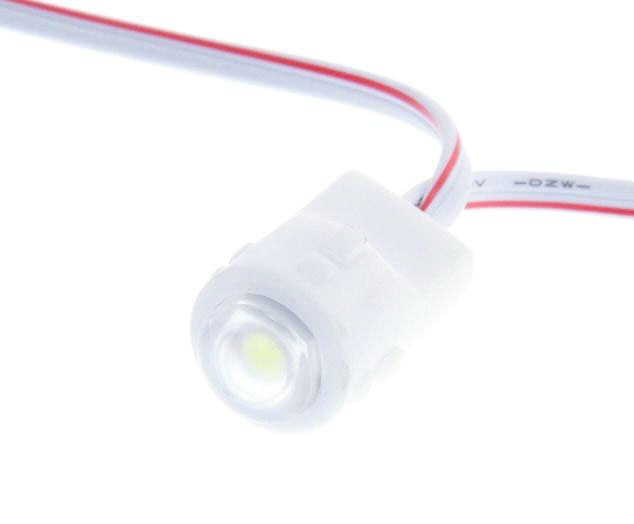

Pinpoint Large White

C115-white

Quick Overview

Pinpoint is a chain LED lighting system with a difference. Instead of being hidden behind the sign like a conventional LED module, Pinpoint is specially intended to view directly.

Download PDF brochure for this range

Use to illuminate the perimeter of a letter or logo design or use en-masse to fill an area with points of light.

Pinpoint has a lens which produces a wide 150º viewing angle and is small enough to be used in this way but not so small so as to lose its definition (like a simple 5mm LED would be) when installed many metres away from he viewer.

Pinpoint is easy to install, bright, economical to use, suitable for indoor or outdoor and is supplied in a chain of 50 modules which can be cut into shorter lengths at any point. These modules are designed to be panel mounted and have a self-retaining, clip-in moulded body which pushes into the perforated panel from behind.

APPLICATIONS

Direct viewing LED array in perforated panel

Specifications
ColourWhite
Input Voltage12V DC
Operating Current0.020A (Max.)
Operating Temp.‐20˚ to +70˚
Power Consumption0.24W (Max.)
Dimensions26.7mm(L) x 14.6mm diameter
View Angle160˚
Luminous Flux (Typ.)20lm
Colour Temperature (Typ.)9000k
  • Wide beam angle 150°
  • One 5050 SMD LED
  • High brightness and efficiency (83 lumens per Watt)
  • Low power consumption (0.24W)
  • Dust and water resistant (IP66)
  • Safe, low power operation (12VDC)
  • 3 years warranty or 13,000 hours operation whichever occurs first
