LED-dim

LEDdim12/24

Quick Overview

12 & 24V rotary dimmer switches

Download Short Form PDF brochure for this range

To obtain the optimum lit effect it is sometimes necessary to adjust the brightness of lighting using a dimmer switch. Dimmer switches used for conventional lighting including tungsten halogen, fluorescent, compact fluorescent and 230V lamps are unsuitable for use with LED lighting.

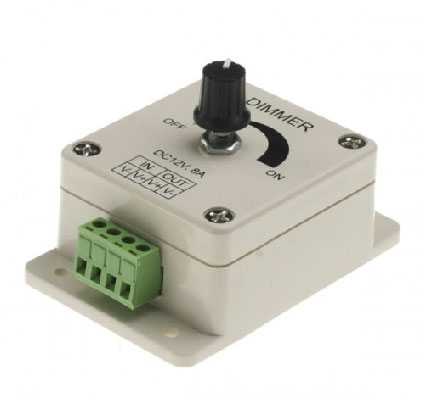

LEDim is a simple, reliable and economical to use, rotary style PWM dimmer featuring a linear potentiometer mounted in an ABS enclosure with a removable and plug-in terminal block for easy wiring. External flanges provide 4-fixing points. Alternatively, the push-on knob can be removed and the whole unit panel mounted and fastened with the nut the spindle.

These switches are designed to provide smooth brightness control of single colour, constant voltage LED arrays up to 8amps. Available in one version which is suitable for both 12V and 24VDC loads. Brightness is adjusted by turning a rotary knob which can also be used to switch the lighting off.

APPLICATIONS

Low power, manual dimming control of 12 or 24V d.c. constant-voltage, single colour LED arrays

Specifications
Compatible withThese switches are designed to provide smooth brightness control of single colour, constant voltage LED arrays up to 8amps.
  • One version LEDim12/24V suitable for both 12V and 24V DC
  • Dimming method: Pulse Width Modulation
  • 8A max
  • Single channel output
  • Rotary knob for on/off and brightness
  • All plastic construction
  • Simple installation & connection
  • Compact size L89xW59xH35mm (ex knob)
  • Power consumption less than 1W
