MW range of 1-10V dimmable constant voltage power supply units for 12V LED modules
High-performance and fully featured weatherproof LED drivers designed for illuminated signage and other lighting applications.
Design is approved to EN61347-2-13: particular safety requirements for electronic control gear for LED modules.
For connection to the normal 230V a.c. ‘Mains’ supply, these drivers are suitable for 12V current limited LED modules including F-LED, H-LED, M-LED, FlexiLED, PinPoint and SE-LED. Dimming control is via a pair of wires (Blue+, White-) on the secondary side of the driver. Use a 1-10V dimmer switch to adjust brightness. Important: for reliable dimming function observe recommended max. and min. Wattage
|Rated power (W) / current (A) output||60 / 5||Recommended max and min-power (W) / current (A) output||Max. 51 / 4.2 Min. 30 / 2.5|
|Input current typ. (A) @ 230V||0.43|

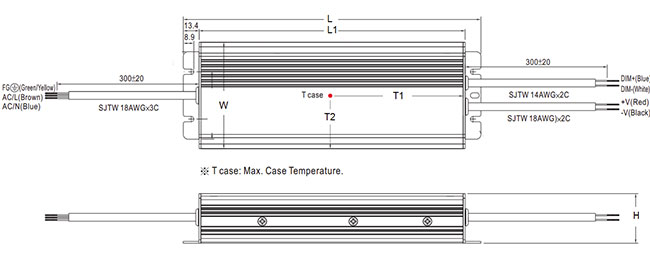

|Dimensions (mm) / Weight (kg)||L 195, L1 172 x W 62 x H 39 / 0.9|
